Exploring the Differential

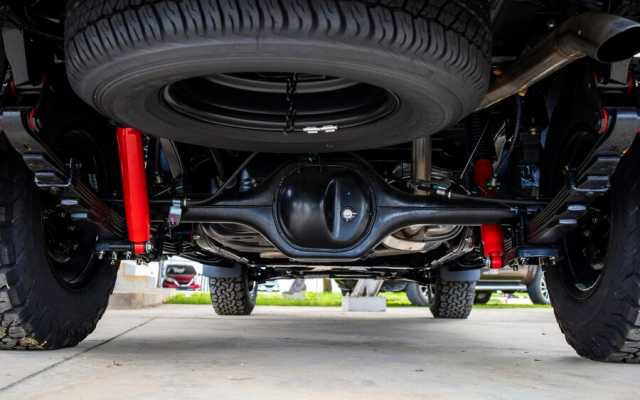

What Exactly is a Differential? The differential – or car axle – is essentially the component responsible for transmitting rotational force from the engine to the ring gear. Its primary function lies in discerning between the rotations of the right and left wheels, thereby minimizing slippage during maneuvers and turns.
Understanding the Differential's Function
The differential serves as the cornerstone of a vehicle's drivetrain system, facilitating smooth power distribution to the wheels while allowing them to rotate at different speeds, such as during turns.
Delving into Differential Types
- Open Differential: This conventional type of differential allows the wheels to rotate independently, making it ideal for standard road conditions.
- Locking Differential: Designed to enhance traction, locking differentials ensure both wheels spin at the same speed, beneficial in off-road or low-traction situations.
- Limited Slip Differential (LSD): LSDs strike a balance between open and locking differentials, providing improved traction while still permitting some wheel speed differentiation.
- Electric Controlled Limited Slip Differential: Leveraging advanced electronic controls, this variant of LSD offers precise torque distribution, optimizing traction and stability across various driving conditions.
Anatomy of a Differential
Differential Components
The differential consists of several components that work together with precision to minimize wheel slippage. Here are the components:
- Drive Pinion Gear and Shaft: These gear components transmit power from the propeller shaft to the ring gear.
- Ring Gear: Receives rotation from the drive pinion and transfers it to the side gear.
- Spider Gear and Shaft: Both serve to differentiate wheel rotation, aiding in vehicle maneuverability during turns.
- Differential Carrier: Acts as a protective housing for all other components.
- Side Gear: Distinguishes rotation between left and right wheels during turns, transmitting manipulated rotation to the axle shaft.
- Axle Shaft Bearing: Bearings supporting rotating components against the axle shaft housing.
- Axle Shaft Housing: Encloses the main differential system and wheel axles.
- Axle Shaft Housing Cap: Cover with bolts, seals the housing and provides oil passage.
- Adjuster Nut: Adjusts clearance for pinion gear movement before final gear engagement.
- Bearing Cap: Holds axle shaft bearings next to the side gear.
- Differential Oil Tube: Filling port for differential oil.
- Universal Joint Flange: Transfers rotation from propeller shaft, smoothing power transfer.
- Gasket: Seals connections to prevent oil leaks under pressure.
Mechanism Behind Differential Operations
How the Differential Functions in Straight-line Driving
During straight-line motion, the differential operates smoothly, distributing power evenly to both wheels, ensuring efficient propulsion without undue strain.
How the Differential Operates During Turns
When the vehicle negotiates a turn, the outer wheel travels a greater distance than the inner wheel. The differential compensates for this variance by allowing the outer wheel to rotate faster than the inner one, enabling smooth cornering without wheel slippage.
Recognizing Signs of Differential Damage
1. Leak in Differential Oil
One of the most conspicuous indicators of a malfunctioning differential is the presence of oil leaks. These leaks typically stem from worn seals or gaskets and necessitate immediate attention to prevent further damage.
2. Vibration in the Car's Differential
Experiencing abnormal vibrations emanating from the differential area could signify worn-out or misaligned components, warranting a thorough inspection by a qualified technician.
3. Audible Buzzing Sound
A buzzing or humming noise emanating from the differential region during vehicle operation could indicate issues such as worn gears or inadequate lubrication, necessitating prompt diagnosis and repair.
In conclusion, understanding the intricacies of differentials – their types, components, operational principles, and signs of potential damage – is paramount for maintaining optimal vehicle performance and safety. By staying vigilant and addressing any arising issues promptly, drivers can ensure smooth and trouble-free journeys on the road.
