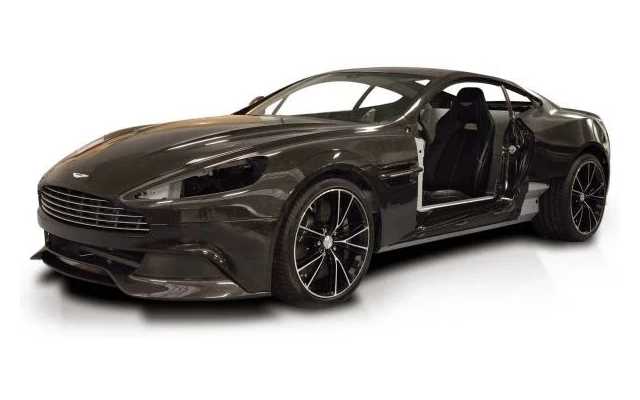

Aston Martin Vanquish Specification

May 11, 2015

Aston Martin Vanquish Specification

The advanced AM29 V12 engine is the most powerful Aston Martin GT production engine ever created. Peak power of 568 bhp. Peak torque of 630 Nm. A top speed of 201 mph. Blistering 0-60 mph of just 3.6seconds. Not only did deliver stunning performance, also did the impossible – AM29 delivers improved fuel efficiency of 22.1mpg (combined economy).

Vanquish sees AM29 tuned to its most potent specification - it’s the ultimate heart for ultimate Grand Tourer.

Aston Martin Vanquish Specification

Body
  • Two-door Coupe body style with 2+0 seating 2+2 seating
  • Extruded aluminium and Carbon Fibre bonded VH body structure
  • Carbon Fibre body panels
  • Lightweight multi-layer Volante fabric roof
  • Cast-magnesium door structures
  • Single bi-xenon headlamps with integrated LED side lights and direction indicators
  • LED light blade tail-lamps
  • Exposed Carbon Fibre splitter, diffuser and sill blade
Dimensions
  • Length 4692 mm (184.7”) 4728 mm (186”) (including number plate plinth)
  • Width 1912 mm (75.2”) (excluding door mirrors)
  • 2067 mm (81.3”) (including door mirrors)
  • Height 1294 mm (50.9”)
  • Wheelbase 2740 mm (107.9”)
  • Fuel tank capacity 78 litres (17.2 Imp. Gal. /20.5 US Gal)
  • Coupe Weight: 1739 kg (3834 lb)
  • Weight Distribution 51%/49% (Front/Rear)
Aston Martin Vanquish Specification

Engine
  • All alloy quad overhead cam 48-valve 5935 cc V12
  • Front mid-mounted engine, rear-wheel drive
  • Fully catalysed stainless steel exhaust system with cross pipes
  • Compression ratio 11:1
  • Dual variable camshaft timing
  • Knock-sensing
  • Fully CNC machined combustion chambers
  • Maximum power 424 kW (568 bhp / 576 PS) at 6650 rpm
  • Maximum torque 630 Nm (465 lb ft) at 5500 rpm
  • Coupe Acceleration 0-60 mph in 3.6 sec; 0-100 km/h in 3.8 sec
  • Coupe maximum speed 201 mph (324 km/h)
Transmission
  • Rear mid-mounted ‘Touchtronic III’ eight-speed automatic gearbox with electronic shift-by-wire control system
  • Alloy torque tube with Carbon Fibre propeller shaft
  • Limited-slip differential
  • Final drive ratio 2.73:1
  • Launch control
Steering
  • Steering rack with 15:1 steering ratio
  • Speed-dependent rack and pinion power-assisted steering
  • 2.6 turns lock-to-lock
  • Column tilt and reach adjustment
Fuel Consumption
  • Litres/100 km (mpg)
  • Urban 19.3 (14.6)
  • Extra urban 9.1 (31.0)
  • Combined 12.8 (22.1)
North American Gas Mileage
  • City 13 US mpg
  • Highway 21 US mpg
  • Combined 16 US mpg
CO2 Emmissions
  • 298 g/km
Brakes
  • Front ventilated CCM brake discs 398 mm diameter with six-piston calipers
  • Rear ventilated CCM brake discs 360 mm diameter with four-piston calipers
  • 3-stage Dynamic Stability Control (DSC)
  • Anti-lock braking system (ABS)
  • Electronic Brakeforce Distribution (EBD)
  • Emergency Brake Assist (EBA)
  • Traction Control (TC)
  • Hydraulic Brake Assist (HBA)
  • Positive Torque Control (PTC)
Wheels & Tyres
  • 20” 10-spoke silver painted alloy wheels
  • Front Pirelli P-Zero 255/35 ZR20
  • Rear Pirelli P-Zero 305/30 ZR20
Suspension
  • Front independent double wishbone, coil springs, anti-roll bar and adaptive dampers
  • Rear independent double wishbones, coil springs, anti-roll bar and adaptive dampers
  • 3-stage Adaptive Damping System (ADS) with Normal, Sport and Track modes
In-Car Entertainment
  • 1000-watt Bang & Olufsen BeoSound 13-speaker audio system
  • Infotainment system (AMi) with capacitive switching
  • Hard Disk Drive (HDD) satellite navigation 1,2
  • 6.5” LCD Screen
  • DAB radio 1
  • AM/FM radio 1
  • USB connector with Waveform Audio Format (WAF), Windows Media Player (WMA) and MPEG (MP3) audio file compatibility
  • A2DP Bluetooth® audio
Standard Equipment
  • Full-grain Luxmill leather interior
  • Alcantara® headlining on coupe and Rökona and Alcantara® headlining on Volante
  • Electrically operated front seats with side airbags
  • Memory front seats and exterior mirrors (three memory positions)
  • Coupe 2+0 seating configuration with flexible rear environment storage, Volante 2+2 seating configuration
  • Satin chrome jewellery pack
  • Powerfold exterior heated mirrors
  • Front and rear parking sensors
  • Cruise control
  • Tyre pressure monitoring
  • Alarm and immobiliser
  • Remote control central door locking and boot release
  • Automatic temperature control
  • Heated front seats
  • Curtain side head airbags
  • Dual stage driver and passenger front airbags
  • Pelvis and thorax seat mounted airbags
  • Seat belt dual pre-tensioners and digressive load limiters
  • Trip computer
  • Aston Martin Tracking by Cobra (UK only) 1,3,5
  • Laminated windscreen with clear noise-insulation layer
  • Glass ECU
  • Titanium bonnet and side strake meshes
  • Bright aluminium front grille
  • Chrome side strakes and tailpipe trim
  • Heated rear screen
  • Black gearshift paddles with colour-keyed leather trim
  • Rear parking assist camera
Optional Equipment
  • Alternative brake caliper finish – Black, blue, yellow and red brake calipers
  • 10-spoke cast alloy wheels - Graphite painted
  • 20-spoke forged alloy wheels –
  • Liquid Silver painted
  • Silver painted with diamond-turned finish
  • Graphite painted with diamond-turned finish
  • Gloss Black painted with diamond-turned finish
  • 10-spoke forged alloy wheels –
  • Silver painted with diamond-turned finish
  • Gloss Black painted with diamond-turned finish
  • Satin Black painted with diamond-turned finish
  • Black vaned grille
  • Magnum Silver or Black Mesh finish
  • Black textured tailpipe
  • Exposed Carbon Fibre roof panel 6
  • Exposed Carbon Fibre door mirror caps
  • Exposed Carbon Fibre side strakes
  • Exposed Carbon Fibre door handles
  • Protective film
  • Black Luxmill leather part Alcantara® steering wheel 6
  • Colour-keyed Luxmill leather steering wheel
  • Black One-77 leather steering wheel with black Alcantara® inserts 6
  • Colour-keyed One-77 Leather Steering wheel with Obsidian Black leather inserts
  • Centre stack facia in Carbon Fibre 2x2 Twill, Piano Black, Herringbone Carbon Fibre, Piano Red and Piano Ice Mocha
  • Headrest embroidery – Aston Martin Wings or Vanquish logo
  • Black hardware pack
  • Full Carbon Fibre gearshift paddles
  • Shadow bronze jewellery pack
  • Personalised sill plaques
  • Auto-dimming mirror with garage door opener
  • Heated and ventilated seats
  • Perforated leather door inserts
  • Smokers’ pack
  • Second glass ECU
  • Aston Martin tracking by Cobra 1,3,5
  • Alarm upgrade (Volumetric and tilt sensors)
  • Toolkit
  • 6-CD auto-changer
  • First-aid kit
